Maanshan Zhuoli Machinery Technology Co., Ltd. Factory Tour

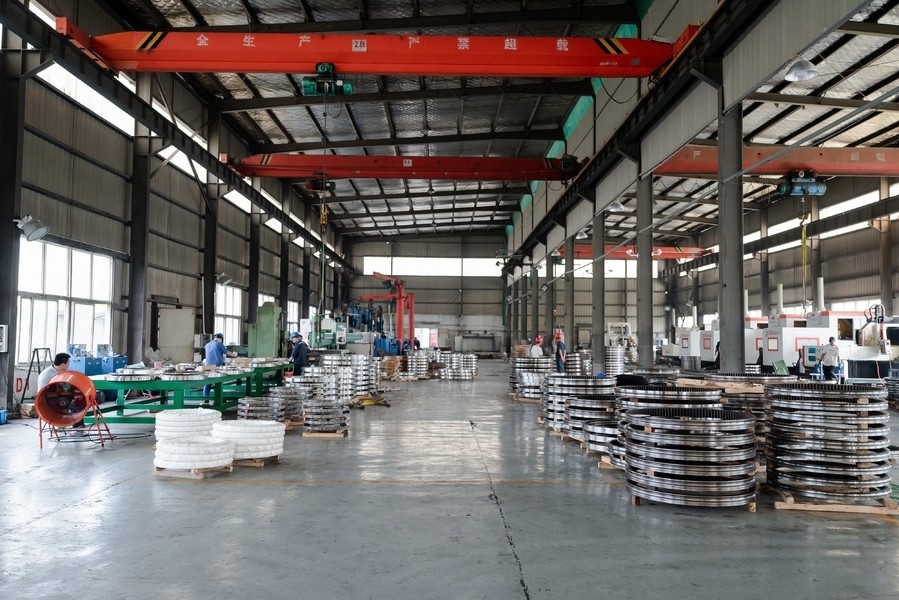

Maanshan Zhuoli Machinery Technology Co., Ltd. manufacturer production line
Maanshan Zhuoli Machinery Technology Co., Ltd.

honest build the brand,quality win the market.

China Maanshan Zhuoli Machinery Technology Co., Ltd. Company Profile
Maanshan Zhuoli Machinery Technology Co., Ltd.
Maanshan Zhuoli Machinery Technology Co., Ltd.
Detail Information
Main Market:
Worldwide
Business Type:
Manufacturer
Brands:
ZHUOLI
No. of Employees:
35~50
Annual Sales:
2500000-2800000
Year Established:
2016
Export p.c:
70% - 80%
Customers Served:
OEM ODM
Detail Description

Zhuoli is a slewing ring bearing manufacturer with more than 20years experience,specialzed in manufacturing all types of slewing bearing ring and pinion gears for various indunstries. Located in Ma anshan,where very close to raw material base,our leading time and prices are most competitve. With workers and engineers more than 20years working experience in slewing ring bearing, our Quality is highly stable and approved by overseas customers.

production line
  • Check raw material

  • Material :50Mn 42CrMo
  • Heating treatment :Q+T
  • Condition of delivery: Rough turning
  • Check in factory:Size/hardness/flaw detector

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 0

  • Rough Turning

  • Machine:Vertical lathe
  • Range of process:300mm-2500mm
  • Grade of process: IT10 grade

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 1



  • Rough turning of raceway

  • Machine:Vertical lathe
  • Range of process:300mm-2500mm
  • Grade of process: IT10 grade

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 2

  • Raceway heat treatment

  • Range of process:300mm-2500mm
  • Hardness of raceway:HRC55-62
  • Depth of heating:2-8mm
  • Process parameters:automatic tracking,real time monitoring

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 3

  • Gear making

  • Range of process:300mm-2500mm
  • Grade of process: Grade 8-10



Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 4





  • Gear heat treatment

  • Range of process:300mm-2000mm
  • Range of hardness: HRC 50-60
  • Depth of heating:0.6-4mm
  • Process parameters:automatic tracking,real time monitoring

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 5

  • Surface finish turning

  • Range of process:300mm-2500mm
  • Grade of process: IT7-IT10 grade
  • Surface roughness:3.2/6.3

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 6





  • Hole drilling

  • Range of process:300-2500mm
  • Position precision:0.5mm



Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 7





  • Raceway finish turning

  • Range of process:300-2500mm
  • Process precision :Grade 7-8 7-8级
  • Surface roughness :0.8-1.6

Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 8





  • Deburring and cleaning

  • Deburring range :300-2500mm
  • Deburring items:Plug,soft zone,tooth chamfer,rust cleaning,cleaning and ect.





Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 9



  • Assemble

  • Range of assemble :300-2500mm





Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 10





  • Final inspection

Full size inspection:Dimensions,raceway hardness,axial clearance,radial clearance,axial runout, radial runout, tooth runout,tooth hardness,flexible turning,surface,documents and so on.





Maanshan Zhuoli Machinery Technology Co., Ltd. factory production line 11
